EPH CDTP2 Room Thermostat Installation Guide
P01 Operating Mode continued
Time Proportional Integral Mode (TPI)
When the thermostat is in TPI mode and the temperature is rising
in the zone and falls into the Proportional Bandwith section, TPI
will start to aꢁect the thermostats operation. The thermostat will
turn on and oꢁ as it gains heat so that it doesn’t overshoot the
target by too much. It will also turn on if the temperature is falling
so it doesn’t undershoot the target which will leave the user with a
more comfortable level of heat.
There are 2 settings that will aꢁect the thermostats operation.
1. The number of heating cycles per hour.
2. The Proportional Bandwith.
CyC – Number of Heating Cycles per hour
6 Cycles
This value will decide how often the thermostat will cycle the
heating on and oꢁ when trying to achieve the target temperature.
You can select 2/3/6 or 12.
26
CDTP2
| General | Details |
|---|---|
| Name | EPH CDTP2 Room Thermostat Installation Guide |
| Make | EPH |
| Language | English |
| Filetype | PDF (Download) |
| File size | 0.58 MB |
(1 votes, average: 5.00 out of 5)
Loading...
beok-controls TGM50 Smart WiFi Underfloor Thermostat User Guide
EPH CONTROLS RFRA RF Room Thermostat Installation Guide
aube technologies TH115-AF-GA Programmable Thermostat Owner’s Manual
INKBIRD ITC-308-WIFI Digital Temperature Controller Thermostat Instruction Manual
Fantini Cosmi CH180-230V Touch Screen Programmable Thermostat Instructions

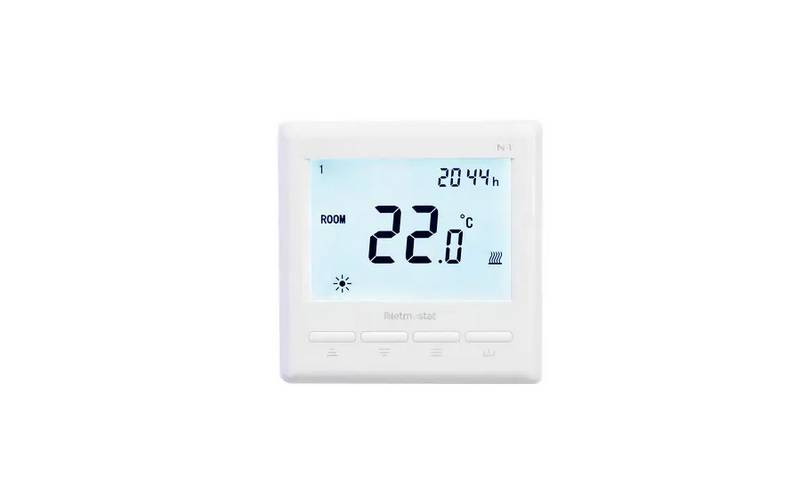

Netmostat N-1 Smart Wifi Programmable Thermostat User Manual
